RS-8080 Dual Cure Type Water & Solvent resistant Direct Emulsion
- RS-8080 Dual Cure Type Water & Solvent resistant Direct Emulsion
-
- Features/Application
¡ñLow viscosity and high solid makes flat profile emulsion surface
¡ñLess smudge/bleeding, excellent print performance
¡ñFast exposure emulsion with screen laser plotter
¡ñExcellent mesh adhesion and encapsulation properties, durable printing
¡ñExcellent solvent resistance and easy to reclaim, extended re-use of screen mesh
¡ñSuperb resolution and sharp image definition for the fine image reproduction
¡ñSuitable for solvent based inks, UV inks.
¡ñSuitable for fine line graphic image, PCB patterns, nameplate and ceramic tiles using plastisol
Specifications
¡¤Viscosity: Approx.4200-4500 mPa･s,25¡æ
¡¤Solid Contents:Approx.38-40%
¡¤Packaging Standards:1kg set,5kgs set
¡ùContact us for custom packaging

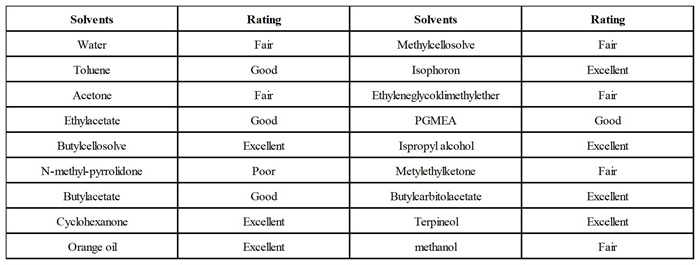

Solvent Resistance Rating
¡ù24 hours swelling/absorption test results.
Exposure Data
The above is for guideline purposes only, kindly to use a gray scale exposure calculator to identify optimal exposure time.
Instructions
¡¤Wash, degrease and dry screen mesh. Remove grease and foreign contaminants with MSP cleanser.
¡¤Coat emulsion slowly in order to prevent air bubbles
・Dry coated screen completely before exposure. Drying temperature up to 40¡ãC(104¡ãF).
・Avoid excessive temperature for drying screens
¡¾Remarks¡¿
¡¤Keep the emulsion in a cool and UV light safe area.¡¤Recommended to filter remaining emulsion with screen mesh before pouring it back into the container to remove any dust, foreign substances and air bubbles.
-
